Workflow results#

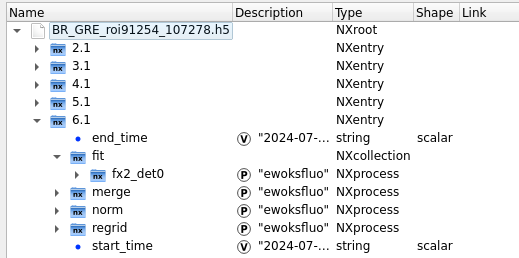

Every step in an ewoksfluo workflow saves one of more NXprocess groups under the output_uri_root

../_images/xrfmap_single_detector_results1.png

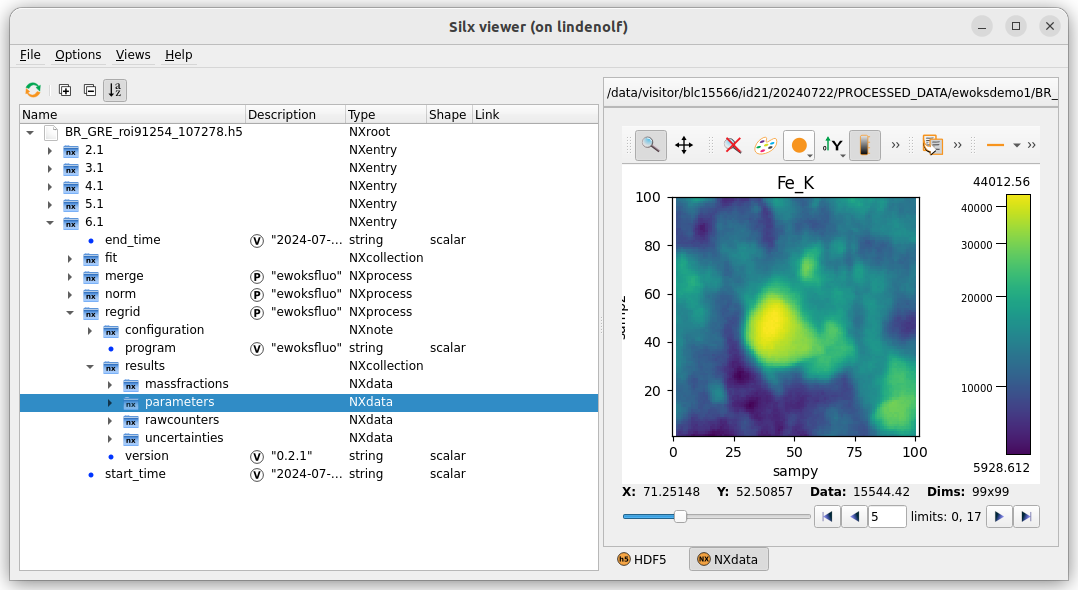

Each NXprocess group contains a configuration group with processing parameters (e.g. PyMca configuration) and a results group with several NXdata groups

../_images/xrfmap_single_detector_results2.png

NXdata group name	Description	Example
parameters	PyMca fit parameters	`Ca_K`, `Fe_K`, …
uncertainties	Standard deviation on PyMca fit parameters	`Ca_K`, `Fe_K`, …
massfractions	Elemental mass fractions	`Ca_K`, `Fe_K`, …
rawcounters	Raw BLISS counters	`idet`, `fx2_det0_events`, …
fit	PyMca fit + residuals	`data`, `model`, …
diagnostics	PyMca Least-Square fit diagnostics	`nFreeParameters`, …
derivatives	PyMca Element Spectra (linear fit)	`Ca_K`, `Fe_K`, …

The parameters group is plotted by default.
