XRF map with one detector#

Download workflow

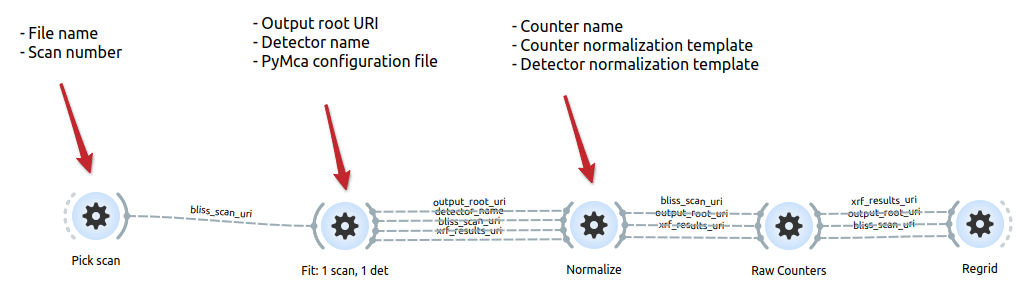

../_images/map_1det.png

The primary workflow parameters are

Parameter

Description

Example

filename

Path to the HDF5 file

/data/visitor/blc15566/id21/20240722/RAW_DATA/BR_GRE/BR_GRE_roi91254_107278/BR_GRE_roi91254_107278.h5

scan_number

Bliss scan number

4

config

Path to the PyMca configuration file

/data/visitor/blc15566/id21/20240722/PROCESSED_DATA/pymca/config_7_12.cfg

output_root_uri

Output URI root

/data/visitor/blc15566/id21/20240722/PROCESSED_DATA/ewoksdemo/BR_GRE_roi91254_107278.h5::/4.1

detector_name

Name of the XRF detector used

fx2_det0

counter_name

Name of the counter for normalization

iodet

counter_normalization_template

Template for counter normalization

180000/<instrument/{}/data>

detector_normalization_template

Template for detector normalization

0.1/<instrument/{}/live_time>
