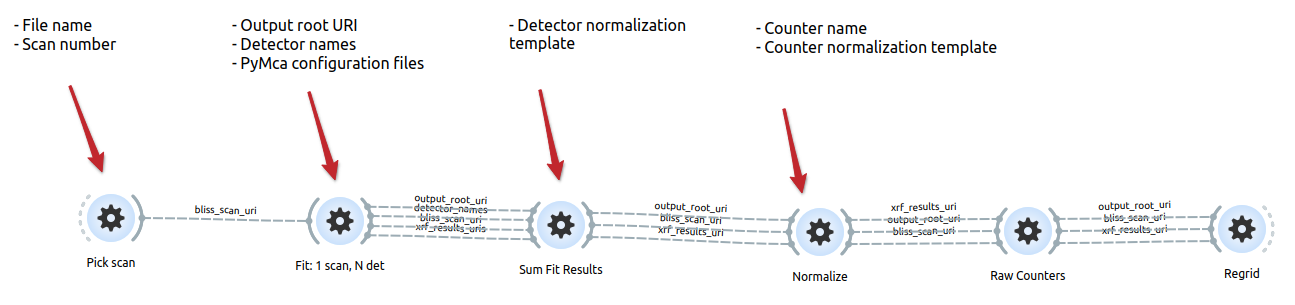

XRF map with multiple detectors#

Download workflow

../_images/map_mdet.png

The primary workflow parameters are

Parameter

Description

Example

filename

Path to the HDF5 file

/data/visitor/blc15566/id21/20240722/RAW_DATA/BR_GRE/BR_GRE_roi91254_107278/BR_GRE_roi91254_107278.h5

scan_number

Bliss scan number

4

configs

Paths to the PyMca configuration files

["/data/visitor/blc15566/id21/20240722/PROCESSED_DATA/pymca/config_7_12.cfg", "/data/visitor/blc15566/id21/20240722/PROCESSED_DATA/pymca/config_7_12.cfg"]

output_root_uri

Output URI root

/data/visitor/blc15566/id21/20240722/PROCESSED_DATA/ewoksdemo/BR_GRE_roi91254_107278.h5::/4.1

detector_names

Name of the XRF detector used

["fx2_det0", "fx2_det1"]

counter_name

Name of the counter for normalization

iodet

counter_normalization_template

Template for counter normalization

180000/<instrument/{}/data>

detector_normalization_template

Template for detector normalization

0.1/<instrument/{}/live_time>
